    • V Notch Flange Channel Letter Bending Machine for Sale

    The best channel bender machine for letters with a V-notch and flange of trim cap letters and back-lit reverse channel letters.

    • Model: VAM-S18
    • Coils: Aluminum and steel coils
    • Width: 20~200mm (0.8”~8”)
    • Thickness: Up to 1.6mm (.063”)
    • Footprint: 9.2’×4.2′
    • Lead Time: 10~15 Days After Payment Received
    • After Service: 24/7 Online Support & Overseas Engineers Available
    GET A QUICK QUOTE

    Applications of V Notch Flange Channel Letter Bending Machine for Sale

    The flange channel letter bending machine for sale, model VAM-S18 is another heavy-duty bending machine that is a must-have high-end option, especially for the sign workshops from North America, as it can do trim cap letters with flange and V-notch backing. Besides, it can also create reverse 3D channel letters, trimless and halo-lit 3D letters.

    Features of V Notch Flange Channel Letter Bending Machine

    alternate feed mechanism of v cut flange letter bender
    channel bender software VAM-S18
    The software comes with a database that has been calibrated for various channel letter coils with different thicknesses, saving customers time and ensuring accurate bending. The saved data can be used directly next time without requiring calibration again. For mass production, select the continuous processing mode, which is more efficient. The software is simple to operate and easy to learn.

    >>The alternate feed mechanism adopts servo control, double screw nut drive, high precision, good high-speed transmission performance, to ensure that the actual feed accuracy error is less than 0.1mm (.004”), and eliminates the physical slippage of the rolling feed and the pressure caused by excessive indentation.
    V cut and flange systems of channel bender machine VAM-S18
    The V-cut notch and flange systems are all controlled by imported high-power servos, which have faster speed and more stable performance. It can V-notch the aluminum coil up to 1.6mm (.063”) thick, and stainless steel and galvanized steel coils as well, making it more functional.
    bending system of channel bender VAM-S18
    The CNC channel letter bending system utilizes a FUJI servo control system, high-rigidity gear drive, telescopic double scimitar bending, large bending torque, a small interference area, and no surface scratches. Not only suitable for bending large letters more than 2 meters (6.5ft) high, but it is also suitable for small letters with sharp corners.
    double slotting tools of v cut and flanging letter bender
    The double-slotting tools can easily handle both aluminum and steel coils, using a saw blade or a knife, your choice. It can be easily switched in the software. Therefore, when any slotting tool fails, it will not affect your delivery date, as you can switch to an alternative tool to continue working.
    automatic shearing system of letter bender machine VAM-S18
    The automatic shearing system is highly convenient and powerful, suitable for use with both aluminum and stainless steel materials. As long as this function is enabled, it will automatically cut off every single channel letter once the job is complete, which significantly saves you time and labor costs.

    Technical Parameters of V Notch Flange Channel Letter Bending Machine

    ModelVAM-S18
    Applicable MaterialsFlat aluminum, steel
    Material Heightup to 200mm (8”)
    Material Thicknessup to 1.6mm (.063”)
    Precisionless than 0.1mm (.004”)
    Bending RadiusAC220V single phase, 50/60Hz, 30A
    Distance of internal & external angles10mm (0.40”)
    Feeding MethodManipulator clamping
    V-Cut TypeServo Motor Control
    V-Cut Angle30 to 120 degrees
    Flanging TypePneumatic Right-angle Folding
    Flanging Edge Width12mm
    Driving Motors5pcs FUJI Servo
    VoltageAC220V single phase, 50/60HZ, 30A
    Power Supply3.8KW
    File FormatDXF, PLT (support CAD, Type3, CorelDraw, Illustrator, etc.)
    Footprint Machine 9.2’×4.2′, coil feeder case, 2.3’×2.3′)
    Gross Weight900KG (1984lbs)

    More Details of V Notch Flange Channel Letter Bending Machine

    Strong magnet of letter coil lock of channel letter bender
    A strong magnet is used to lock the channel letter coil to move on the same level, to avoid jams.
    high power bending servo motor of letter bender VAM-S18
    High power bending servo motor of letter bender VAM-S18
    shearing cylinder of letter bender VAM-S18
    Shearing cylinder of letter bender VAM-S18
    encoder of channel bender VAM-S18
    Encoder to ensure high-precision feeding
    bending system of letter bender VAM-S18
    Bending structure of letter bender VAM-S18
    flange cylinder of letter bender VAM-S18
    Flange cylinder of channel letter bender VAM-S18
    V notch cylinder of channel bender machine VAM-S18
    V-notch cylinder of channel bender machine VAM-S18
    Barometer and solenoid valve of channel bender VAM-S18
    Barometer and solenoid valve of channel bender VAM-S18
    bending sensors of channel letter bending machine VAM-S18
    Bending sensors of channel letter bending machine VAM-S18

    Samples from Channel Bender with V-notch

    channel letter samples by v nocth and flange letter bending machine VAM-S18

    Package & Delivery

    package of v notch and flange channel letter bender machine VAM-S18

    CNC Production Center of Channel Letter Machines

    warehouse of channel letter machine parts
    CNC center of channel letter machine parts

    GET A QUICK QUOTE

    Quotation Form

    Related Products

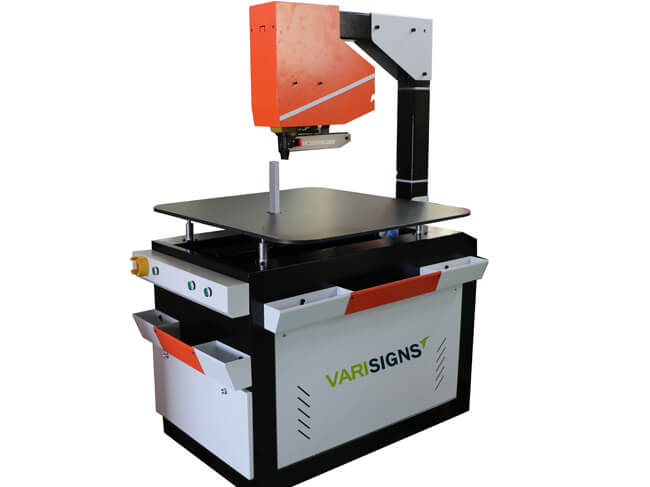

    channel letter stapler machine
