Manual Acrylic Heat Bender for Plastic Light Box




Description of Manual Acrylic Heat Bender for Plastic PVC Light Box

• The acrylic heat bender is the core part of bending machine tools. You can assemble various kinds of ideal practical acrylic bender with this heater.
• Processing Material: Acrylic, Plastic, PVC, Plexiglass.
• Used for: This acrylic heat bender can be widely used in decoration engineering, sign making, display cabinet, aquarium wrapping, lighting LED channel letter, bending the supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates.
• The acrylic heat bender can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
• You can also use many acrylic bender heaters to heat more bents at the same time.

Features of Manual Acrylic Heat Bender

• Reasonable design, small size, compact structure and beautiful appearance;
• Heat even and temperature adjustable;
• With circulating cooling water system on both sides of heating pipe;
• power supply joint and waterpipe joint are at the same end;
• The body is made of special aluminum extrusions.

Advantages of Manual Acrylic Heat Bender

• Portable, small occupation, low consumption and reliable operation;
• Light and practical with low cost, value-priced;
• Circulating cooling water system can make sure other parts (no heating is required) won’t get thermal deformation.
• Free plugging and unplugging, easy to storage and assembles to worktable very conveniently;
• Low consumption, low cost;
• Can be assembled to a hot bending machine or used alone;
• Save space, light and practical;
• Can bend all kinds of plastic sheet.

Technical Parameters of Manual Acrylic Heat Bender

Model VS-BT-300 | VS-BT-600 | VS-BT-1200 | VS-BT-1800 | VS-BT-2400
Maximum Bending Width 310mm (12″) | 610mm (24″) | 1220mm (48″) | 1830 mm(72″) | 2440mm (96″)
Power 1500W
Power Supply AC 100V – 240V, 50Hz or 60Hz
Heating Slot Width 8mm (0.31″)
Heating Thickness 1mm – 6mm (0.04″ – 0.24″)
Heater Size 1.8″ x 1.8″ x 20.5″(45 x 45 x 520mm)
Heater packing size 4.9” x 4.9” x 25.8″(125 x 125 x 655mm)
Box packing Size 13.8” x 7.9” x 7.1”(350 x 200 x 180mm)
Gross Weight 5kg | 7kg | 10kg | 15kg | 18kg

Details of Manual Acrylic Heat Bender

1400839010 b47a3921

s15474 1261

Steps of Usage:
1407825508 56631410
Temperature tips:
• The temperature at the central of heating tube is the highest, which can be up to 500°, and greater the distance from the central the lower the temperature.
• Actually, the appropriate temperature for bending acrylic is about 240°.
• The heater can work 24 hours a day on the circumstance that the water temperature is not high.

Comparison of Manual Acrylic Heat Bender

Water outlet material
1412834560 c94ed08d 1412834842 4e6c1e5
The copycat are using the copper water outlet, the bronze looks really good and I think everyone think copper part will be better than others, but you should know the basic thing is the water will corrode copper and make it rusty and get holes, which will cause water leak.
Beside this copper part price is not higher than our nylon material part.
The water oulet of our acrylic bender is Nylon material, the reason we use this material is this material do not inflate during water current flow and it do not have water corrosion problems.
Alchrome Heating wire inside
1412834717 f071b8a5 1412834725 54d724ac
The copycat heating wire width is not even and its material is not pure Alchrome, if the material is not pure, that will cause part of different temperature. It cause part of Acrylic is soft and other part is still hard. It will cause second time bending or part of Acrylic crack. The heating wire of our acrylic bender is made by screw pitch which will insure the width and have even temperature to bend acrylic sheet.
1412834810 1bc8e519 1412834842 4e6c1e5

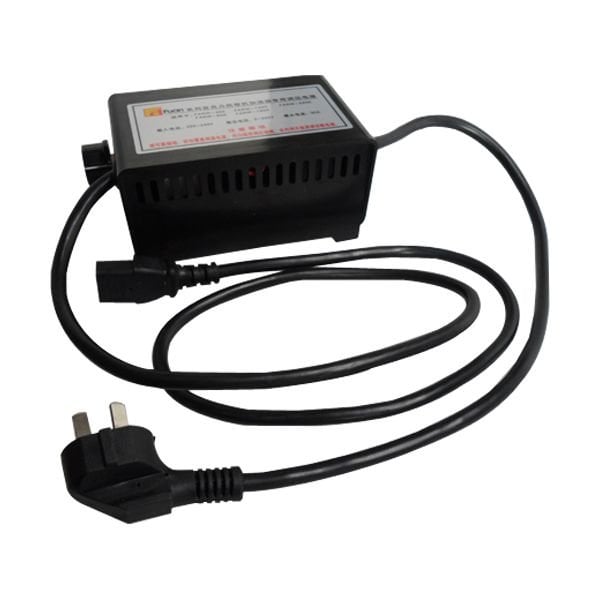

Copycat’s thermostat is common thermostat without heat dissipation base. Thermolator of our acrylic bender is Solid-state thermostat, theirs are common thermostat We also design 4 stands below this thermostat to make sure has better heat dissipation.

1412062633 7905fe22

VS-BT series acrylic bending machine heater has wide applications, such as lighting LED channel letter making, sign making, display cabinet, supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates making, etc. VS-HD-BC06 Model Sign Letter Tool is mainly used for lighting luminous channel letters or characters.

1412062645 970583e7

VS-BT series acrylic bending machine heater is core part of bending machine, it soft the acrylic, you need to bend acrylic by hands. It is space saving, low cost. VS-SB series acrylic bending machine bends acrylic by electric, with super high precision, but it is expensive relatively.

1407825766 34dcb615 1407825756 3aa1523f 1407825737 5c827b96 1407825711 439e4e49 1407825725 8f88d3e7

Additional information

Weight N/A
Bending Width

12'' (300mm), 24'' (600mm), 48'' (1200mm), 71'' (1800mm), 95'' (2400mm)
